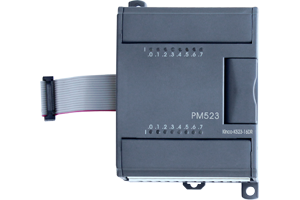

K523 Discrete IO Expansion

The PLC-K523 Discrete Input and Output Expansion Modules are offered in Transistor or Relay outputs and sinking or sourcing inputs. These units come with 4 inputs and 4 outputs or 8 inputs and 8 outputs. These units are ideal to expand beyond the onboard inputs and outputs of the PLC-K5 CPUs, which can handle up to 136 I/O points with a maximum of 6 expansion modules. The inputs are rated for 3.5mA and can be configured for either sourcing or sinking. The transistor outputs are rated for 500mA @ 24VDC and come only in a sourcing configuration. The relay outputs are rated for 2A @ 30VDC or 250VAC, and are great for switching on and off high load devices AC or DC devices, particularly AC or DC motors. The transistor output modules are opto-isolated for unit protection.

Note: The K523 series is LTSOH (Limited to Stock on Hand).




  • Up to 8 Sinking or Sourcing Inputs
  • Up to 8 Relay or Transitor Outputs
  • Inputs are Opto-Isolated
  • Transistor Outputs are Opto-Isolated
  • LED Display to Monitor Running Conditions
  • Easy Maintenance and Installation

Item
↑ ↓
Module
Type
↑ ↓
Input
Points
↑ ↓
Output
Points
↑ ↓
Input
Type
↑ ↓
Output
Type
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Add To
Cart
K523-08DR Expansion Module,
Discrete I/O
4 4 Sinking or
Sourcing
Relay Click here for PDF Spec Sheet Click here to request a Quote. $101.00 view here
Quantity Discounts
1pc. $101.00
10pc. $99.32
25pc. $96.44
50pc. $91.52
100pc. $83.24
Contact Us for Quantities over 100
Add to Cart
K523-08DT Expansion Module,
Discrete I/O
4 4 Sinking or
Sourcing
Transistor Click here for PDF Spec Sheet Click here to request a Quote. $120.00 view here
Quantity Discounts
1pc. $120.00
10pc. $117.45
25pc. $114.04
50pc. $105.33
100pc. $100.35
Contact Us for Quantities over 100
Add to Cart
K523-16DR Expansion Module,
Discrete I/O
8 8 Sinking or
Sourcing
Relay Click here for PDF Spec Sheet Click here to request a Quote. $134.00 view here
Quantity Discounts
1pc. $134.00
10pc. $131.61
25pc. $127.80
50pc. $118.88
100pc. $113.13
Contact Us for Quantities over 100
Add to Cart
K523-16DT Expansion Module,
Discrete I/O
8 8 Sinking or
Sourcing
Transistor Click here for PDF Spec Sheet Click here to request a Quote. $145.00 view here
Quantity Discounts
1pc. $145.00
10pc. $142.14
25pc. $138.02
50pc. $128.97
100pc. $119.71
Contact Us for Quantities over 100
Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

  • 08DR Dimensions
  • 08DR Wiring
  • 16DR Dimensions
  • 16DR Wiring
  • 08DT Dimensions
  • 08DT Wiring
  • 16DT Dimensions
  • 16DT Wiring
