K615S CPUs
The K615S CPUs are offered with 8 Source/Sink inputs and 8 Transistor outputs. The optional expansion modules are attached to the K615S CPU to expand beyond the onboard outputs. The K615S CPUs can handle up to 272 I/O points with a maximum of 16 K6S expansion modules. If a user were to select the K615S along with 16 PLC K622S-16DT units, the user would achieve the maximum 272 I/O points within the constraint of 16 expansion modules. The K615S modules come with transistor outputs with a sourcing configuration and source/sink inputs that can handle voltages up to 30 VDC. The transistor output modules are opto-isolated for unit protection.
- Digital Inputs: 8 Channels, Source/Sink (PNP/NPN)
- Digital Outputs: 8 Channels, Transistor (PNP)
- Supports 3 Channels of High-Speed Input at 200KHz, 1 Channel at Single-Phase 20KHz/Double-Phase 10KHz
- Supports 3 Channels of High-Speed Output at 200KHz, 1 Channel at Maximum 10KHz
- Communication Interfaces: Ethernet (1), RS485 (2), CAN (1)
- Support Connecting Up to 16 K6S-Series Expansion Modules
- Power Supply: 24VDC
.jpg)
| Item ↑ ↓ |
Module Type ↑ ↓ |
Input Points ↑ ↓ |
Output Points ↑ ↓ |
Input Type ↑ ↓ |
Output Type ↑ ↓ |
Downloads | Price (USD) ↑ ↓ |
Quantity Discounts |
Add To Cart |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K615S-16DT | CPU | 8 | 8 | Sinking or Sourcing | Transistor |
|
$121.00 |
view here
|
 |
||||||||||||||
IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

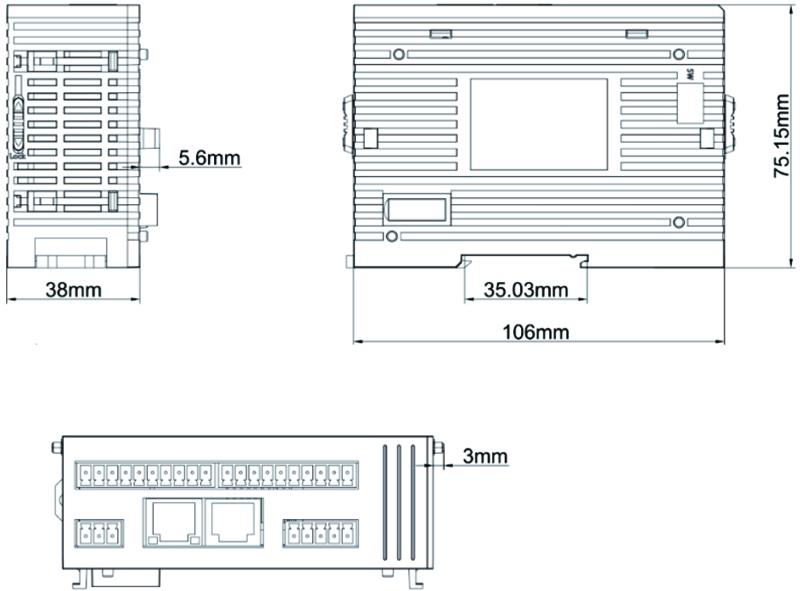

- Dimensions

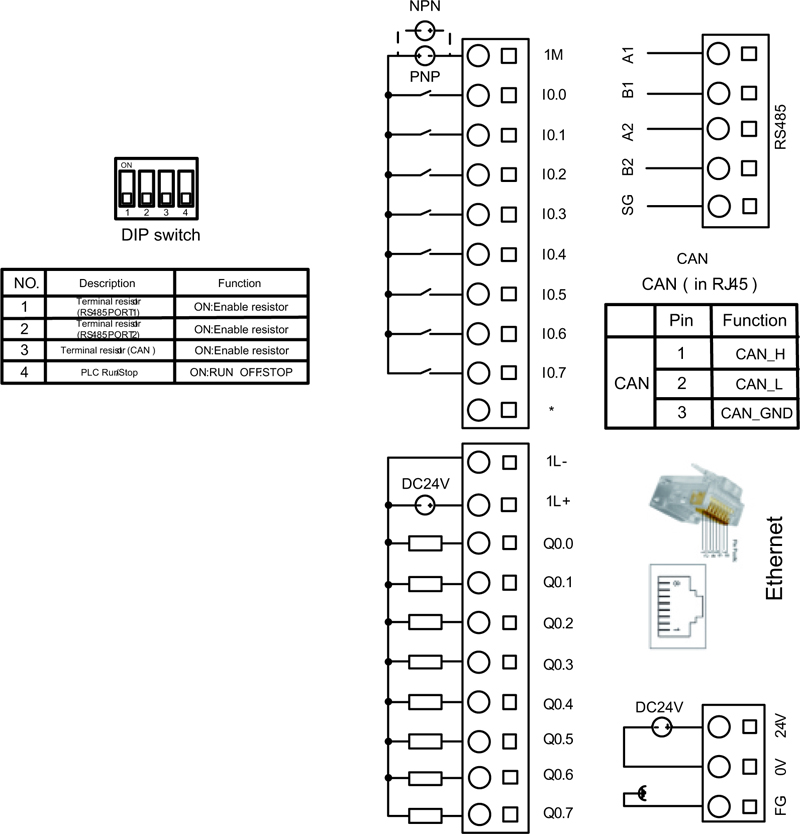

- Wiring
