K623S Discrete IO Expansion
The K623S Expansion Modules are offered with 8 Digital Inputs and 8 Digital Outputs. The optional expansion modules are attached to the K615S CPU to expand beyond the onboard inputs and outputs. The K615S CPUs can handle up to 272 I/O points with a maximum of 16 K6S expansion modules. The transistor output modules are opto-isolated for unit protection.
- Digital Inputs: 8 Channels
- Digital Outputs: 8 Channels
- Inputs (NPN/PNP)
- Transistor Outputs (PNP)
- Powered by Expansion Bus
- 16 Channels (8 Channels/Group)
- Power Supply: 24VDC
.jpg)
| Item ↑ ↓ |
Module Type ↑ ↓ |
Input Points ↑ ↓ |
Output Points ↑ ↓ |
Input Type ↑ ↓ |
Output Type ↑ ↓ |
Downloads | Price (USD) ↑ ↓ |
Quantity Discounts |
Add To Cart |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K623S-16DT | Expansion Module, Discrete I/O |
8 | 8 | Sinking or Sourcing | Transistor |
|
$62.00 |
view here
|
 |
||||||||||||||
IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.
- Dimensions

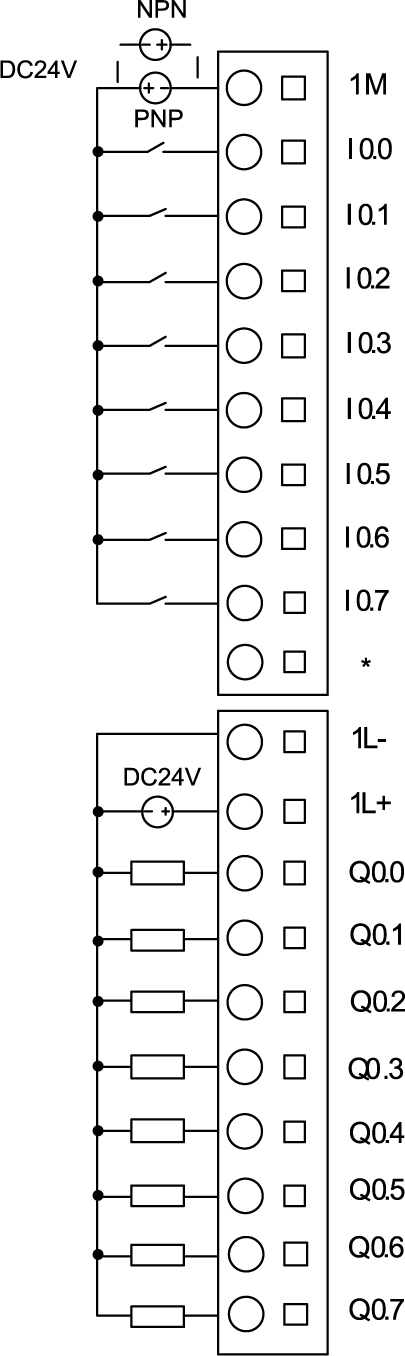

- Wiring
.jpg)
