K633S Analog IO Expansion

The K633S Expansion Modules are offered with 4 Analog Inputs and 2 Analog Outputs. The optional expansion modules are attached to the K615S CPU to expand beyond the onboard inputs and outputs. The K615S CPUs can handle up to 272 I/O points with a maximum of 16 K6S expansion modules.




  • Analog Input 4: 4-20mA, 1-5V, 0-20mA, 0-10V
  • Analog Output 2: 4-20mA, 1-5V, 0-20mA, 0-10V
  • 12-bit Resolution, Accuracy 0.3% F.S. (Full Scale)

Item
↑ ↓		 Module
Type
↑ ↓		 Input
Points
↑ ↓		 Output
Points
↑ ↓		 Input
Type
↑ ↓		 Output
Type
↑ ↓		 Downloads Price
(USD)
↑ ↓		 Quantity
Discounts		 Add To
Cart
K633S-06IV Expansion Module,
Analog I/O		 N/A N/A 4-20mA, 1-5V, 0-20mA, 0-10V N/A Click here for PDF Spec Sheet Click here to request a Quote. $56.00 view here
Quantity Discounts
1pc. $56.00
10pc. $55.15
25pc. $53.55
50pc. $52.78
100pc. $52.04
Contact Us for Quantities over 100
Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

  • Dimensions

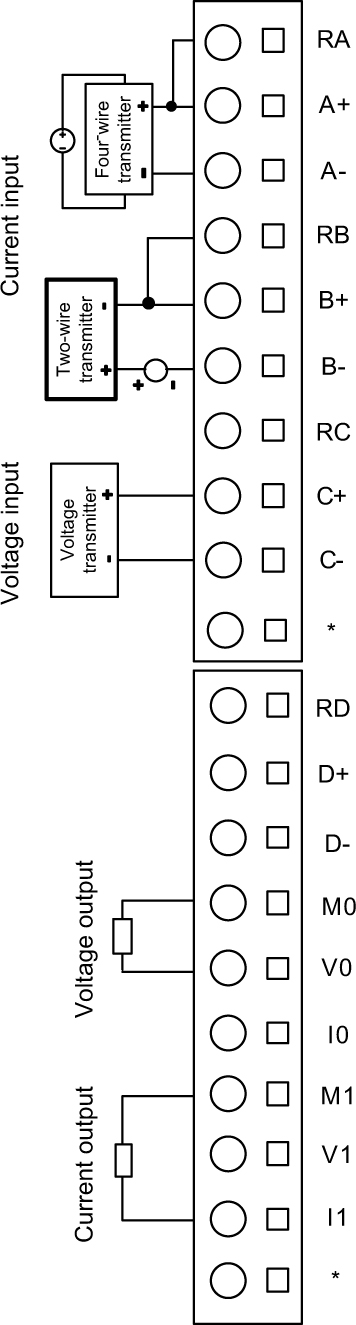

  • Wiring
