K680 Expansion Power Supply

The KNC-PLC-K680 Expansion Power Supply Module. K6 PLCs can accommodate up to 14 expansion modules. Because it does not have I/O or communication functionality, the K680 can be used in addition to 14 other expansion modules, for a total of 15.




  • Input Voltage: 85-265VAC
  • Output Rated Current: 5V 1A / 24V 250mA
  • If Using More than 7 Expansion Modules the KNC-PLC-K680 is Recommended
  • Software Does Not Require Configuration
  • Does Not Use the Address of I/O Image Area
  • Does Not Count as CPU Expansion Module

Item
↑ ↓		 Module
Type
↑ ↓		 Input
Points
↑ ↓		 Output
Points
↑ ↓		 Input
Type
↑ ↓		 Output
Type
↑ ↓		 Downloads Price
(USD)
↑ ↓		 Quantity
Discounts		 Stock
Status
↑ ↓		 Add To
Cart
K680 Expansion Module,
Power Supply		 N/A N/A N/A N/A Click here for PDF Spec Sheet Click here to request a Quote. $49.00 view here
Quantity Discounts
1pc. $49.00
10pc. $46.05
25pc. $43.95
50pc. $42.66
100pc. $40.63
Contact Us for Quantities over 100
Typ. 10 Days Contact Us

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

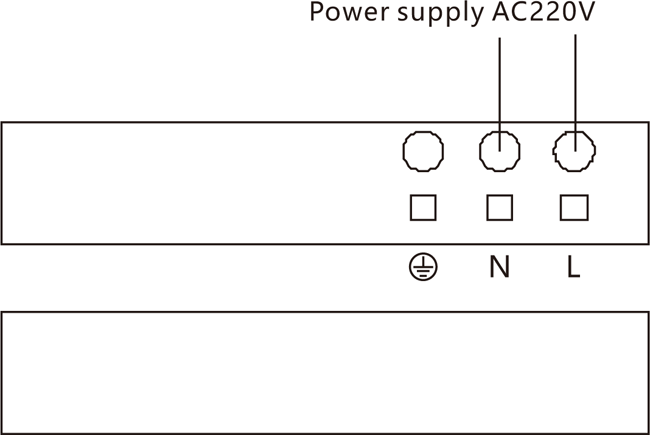

  • K680 Wiring

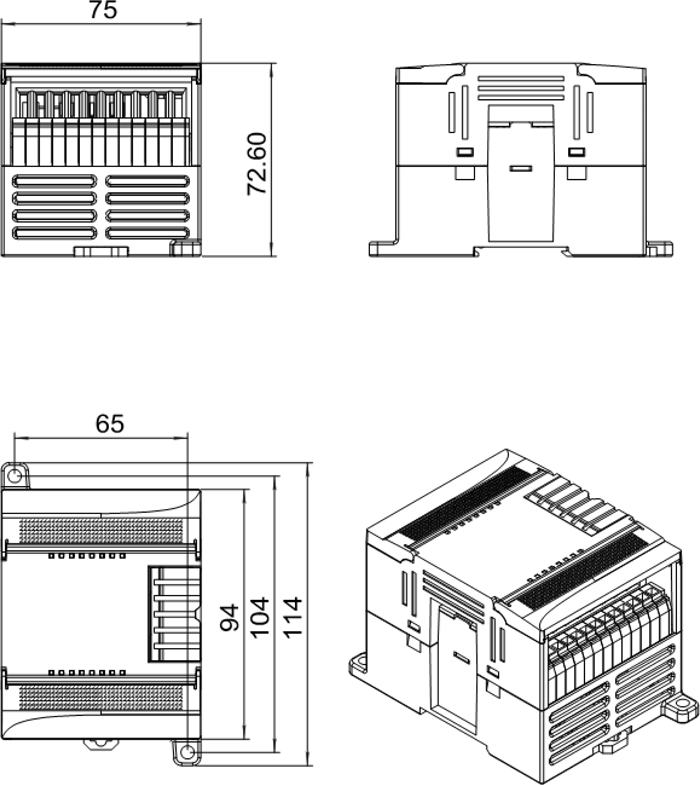

  • Dimensions
