KB6 Expansion Boards
- Add on Module for K6 PLC CPU
- KB6-CAN: 1 CAN Bus Interface
- Two Serial Communication Ports
- KB6-2COM: 1 RS232 (Port0)
- KB6-2COM: 1 RS485 (Port3)
- KB6-4DI: 4 Direct Inputs
- KB6-4DO: 4 Direct Outputs
![](/images/plc/KNC-PLC-KB6_board_into_K6(180x250).png)
IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

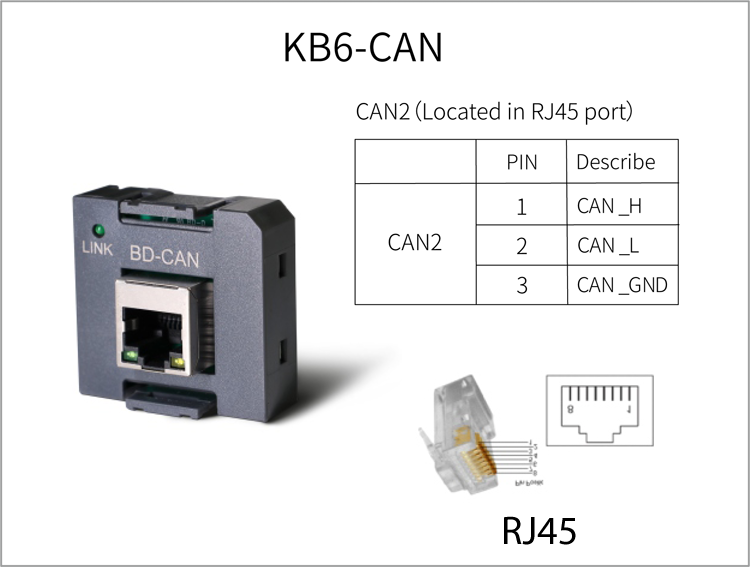

- KB6-CAN Wiring

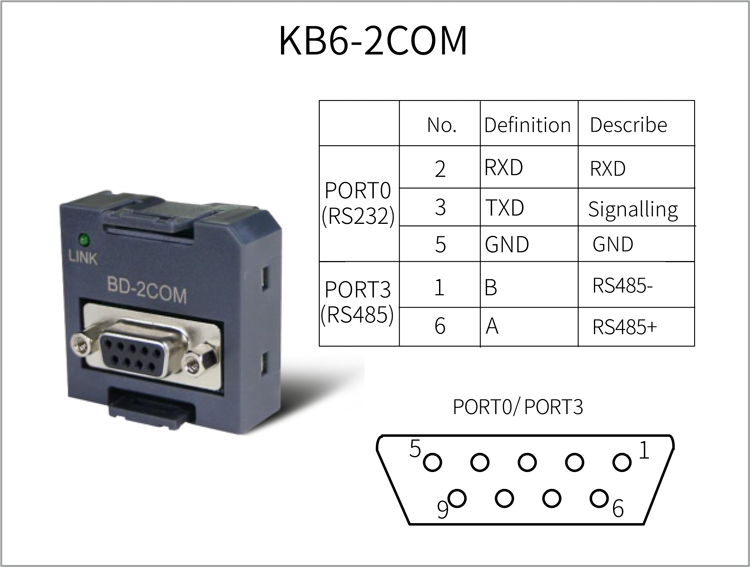

- KB6-2COM Wiring

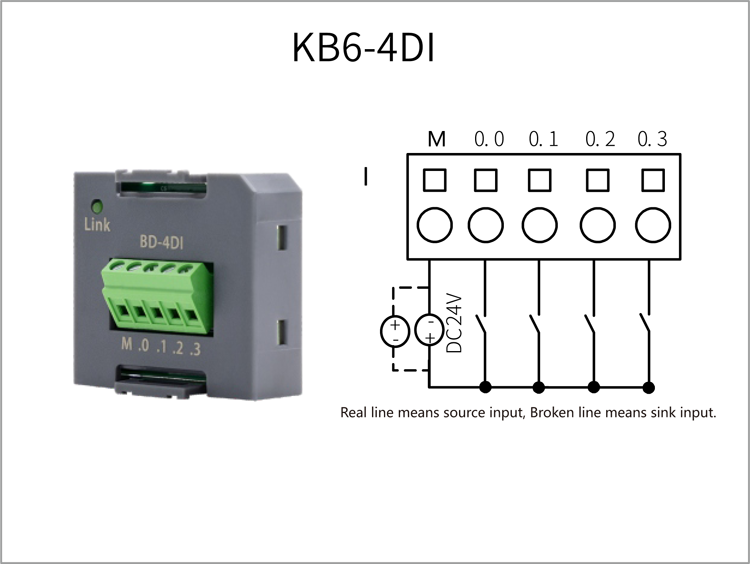

- KB6-4DI Wiring

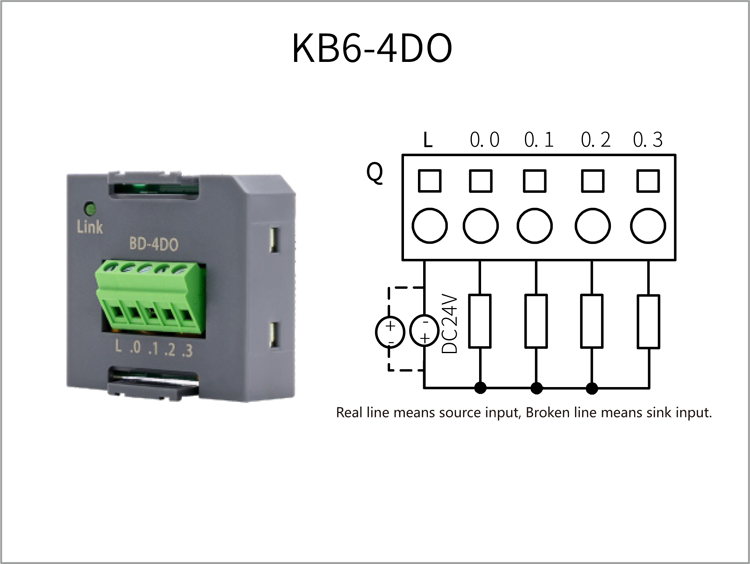

- KB6-4DO Wiring
![](/images/plc/wiring/KB6-CANwiring(750x560).png)
![](/images/plc/wiring/KB6-2COMwiring(750x560).png)
![](/images/plc/wiring/KB6-4DIwiring(750x560).png)
![](/images/plc/wiring/KB6-4DOwiring(750x560).png)
