KS122 Expansion Modules
The KS122 series Expansion Modules can be attached to the KS CPUs or the MK HMI/PLC combo units to expand the I/O beyond the onboard inputs and outputs. The KS series can handle a maximum of 14 expansion modules while the MK can handle 8 modules. Available modules include Digital Outputs Only with Relay or Source Output Types. Each expansion module allows for a distributed installation using a standard Ethernet cable from unit to unit.
- Relay or Sourcing Configuration
- 12 or 14 Output Points
- 24VDC
- I/O is Isolated
![](/images/plc/KS122-14DT(250x250).png)
Item ↑ ↓ |
Module Type ↑ ↓ |
Input Points ↑ ↓ |
Output Points ↑ ↓ |
Input Type ↑ ↓ |
Output Type ↑ ↓ |
Downloads | Price (USD) ↑ ↓ |
Quantity Discounts |
Stock Status ↑ ↓ |
Add To Cart |
||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KS122-12XR | Expansion Module, Discrete Outputs |
N/A | 12 | N/A | Relay |
![]() ![]() |
$78.00 |
view here
|
10 in Stock |
![]() |
||||||||||||||
KS122-14DT | Expansion Module, Discrete Outputs |
N/A | 14 | N/A | Sourcing |
![]() ![]() |
$68.00 |
view here
|
3 in Stock |
![]() |
IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.
- Dimensions

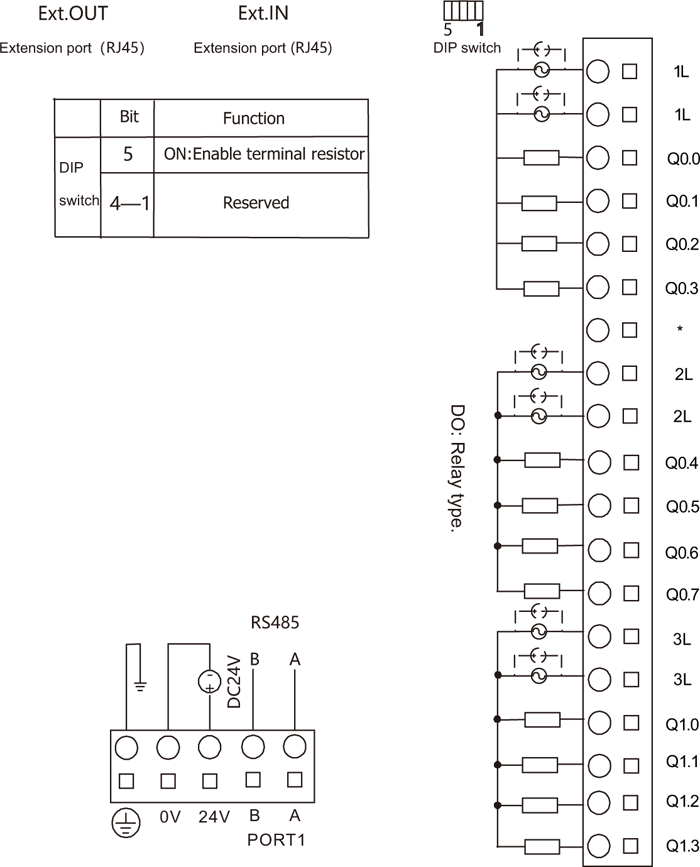

- KS122-12XR Wiring

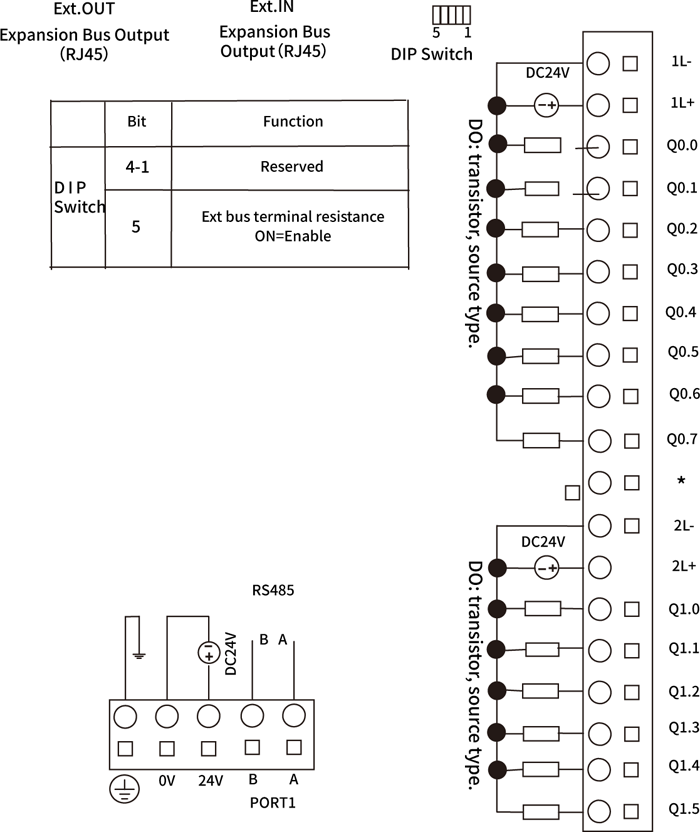

- KS122-14DT Wiring

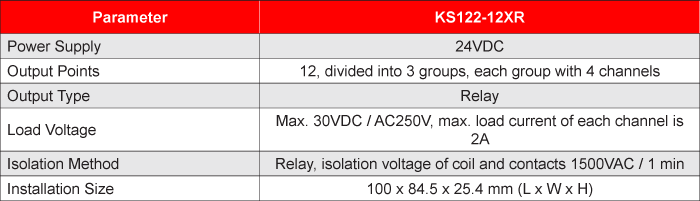

- KS122-12XR Specifications

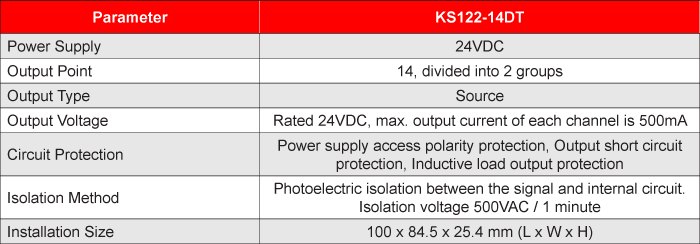

- KS122-14DT Specifications
![](/images/plc/dimensions/KSdimensions(700x800).png)
![](/images/plc/wiring/KS122-12XRwiring(700x870).png)
![](/images/plc/wiring/KS122-14DTwiring(700x830).png)
![](/images/plc/KS122-12XRspecs(700x200).png)
![](/images/plc/KS122-14DTspecs(700x250).png)
