KS133 Expansion Modules
The KS133-06IV Expansion Module can be attached to KS series CPUs or MK series HMI/PLC combo units to expand the I/O beyond the onboard inputs and outputs. KS CPUs can handle a maximum of 14 expansion modules while MK combo units can handle up to 8 expansion modules. Available modules include 4 Analog Inputs and 2 Analog Outputs. Each expansion module allows for a distributed installation using a standard Ethernet cable from unit to unit.
- Power Supply: 24VDC
- Input Channel: 4 (4-20mA, 1-5V, 0-20mA, 0-10V)
- Output Channel: 2 (4-20mA, 1-5V, 0-20mA, 0-10V)
- Measurement Accuracy: 0.3% F.S.
- Output Accuracy: 0.5% F.S.
.png)
| Item ↑ ↓ |
Module Type ↑ ↓ |
Input Points ↑ ↓ |
Output Points ↑ ↓ |
Input Type ↑ ↓ |
Output Type ↑ ↓ |
Downloads | Price (USD) ↑ ↓ |
Quantity Discounts |
Stock Status ↑ ↓ |
Add To Cart |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KS133-06IV | Expansion Module, Analog I/O |
4 | 2 | 0-20mA 4-20mA 1-5VDC 0-10VDC |
0-20mA 4-20mA 1-5VDC 0-10VDC |
|
$141.00 |
view here
|
6 in Stock |
|
||||||||||||||
IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.
- Dimensions

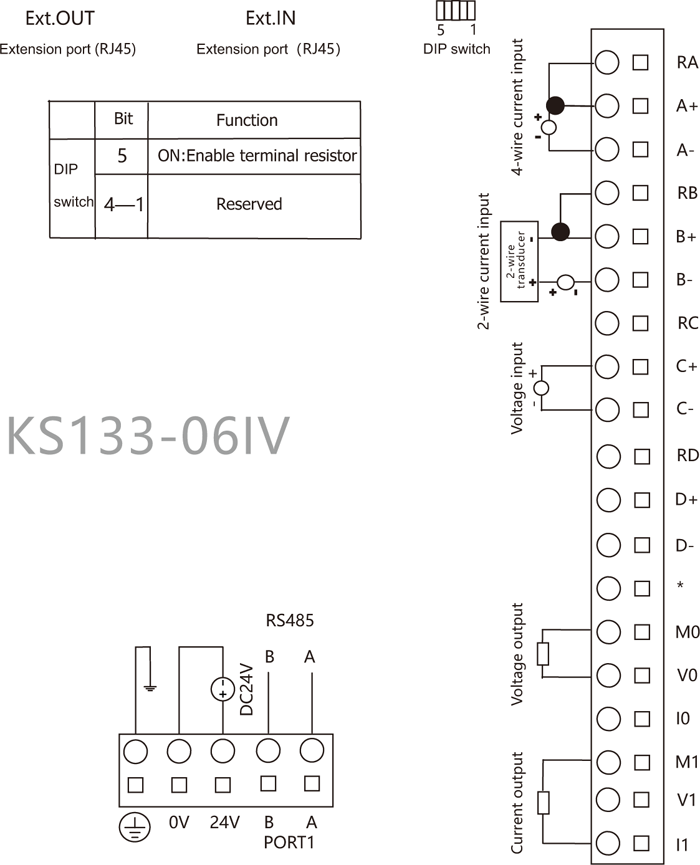

- Wiring

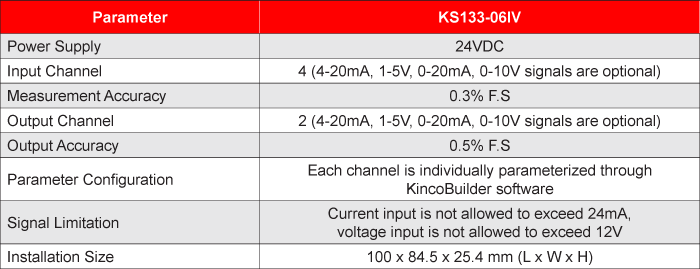

- Specifications
.png)
.png)
.png)
