The SMC40S-0010 Series Servo Motor offers a low-cost solution for motion control applications requiring position and speed control. With the new 16 Bit Single-Turn Magnetic Encoder it allows for better cushioning ability and higher cost-performance ratio. These Servo Motors have Insulation Class F which is the best Insulation Class on the market. They are very quiet with high reliability and stability in high temperature environments. These Servo Motors boast peak torque values up to 0.96 Nm, provide excellent dynamic response, allow for 3 times the overload capacity, and has a rated torque of 0.32 Nm. It is available in a 40mm square flange size, with a brake option.

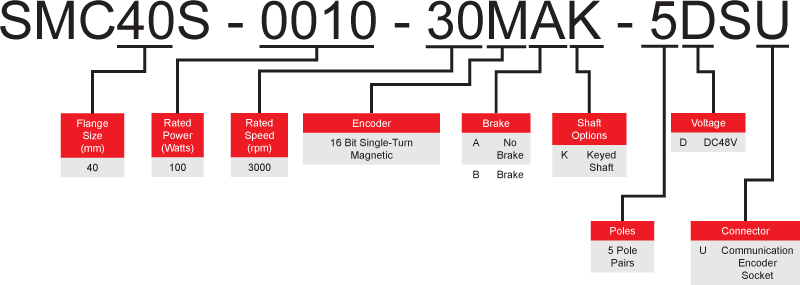

Note: Part numbers with -30MBK are equipped with a brake.
