IWMC10409

The IWMC10409 Integrated Servo Wheel includes a Servo Driver, Servo Motor, Gearhead and Rubber Wheel, all highly integrated in one unique product. This Integrated Servo Wheel creates a compact Servo System which uses less space than a typical Servo System, facilitating downsizing. These packages are ideal and provide easy start-ups, convenience, and performance. The Servo Motors included in these packages provide torque up to 60 Nm. The Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate in position control mode with either pulse and direction inputs, internal position points, or internal speed points.




  • 24-60VDC
  • 165mm Wheel Frame Size
  • 104mm Motor Frame Size
  • Singleturn Magnetic Encoder
  • 1.9m/s Rated Linear Speed
  • 22 Nm Rated Torque
  • Standard CANopen Communication
  • Position and Speed Control
  • 24V Logic Power Supply

Item
↑ ↓
Rated
Power
(Watts)
↑ ↓
Rated
Voltage
(VAC)
↑ ↓
Rated
Speed
(rpm)
↑ ↓
Rated
Torque
(Nm)
↑ ↓
Rated
Current
(Arms)
↑ ↓
Brake
↑ ↓
Drive
Control
Capabilities
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Add To
Cart
IWMC10409-02222-A165-MADT 500 24-60 VDC 2000 22 - No Position,
Speed, Torque
Click here to Download Software Click here to request a Quote. $833.00 view here
Quantity Discounts
1pc. $833.00
10pc. $822.98
25pc. $727.90
50pc. $717.50
100pc. $707.39
Contact Us for Quantities over 100
Add to Cart
IWMC10409-02222-A165-MBDT 500 24-60 VDC 2000 22 - Yes Position,
Speed, Torque
Click here to Download Software Click here to request a Quote. $906.00 view here
Quantity Discounts
1pc. $906.00
10pc. $891.31
25pc. $776.44
50pc. $765.35
100pc. $754.57
Contact Us for Quantities over 100
Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

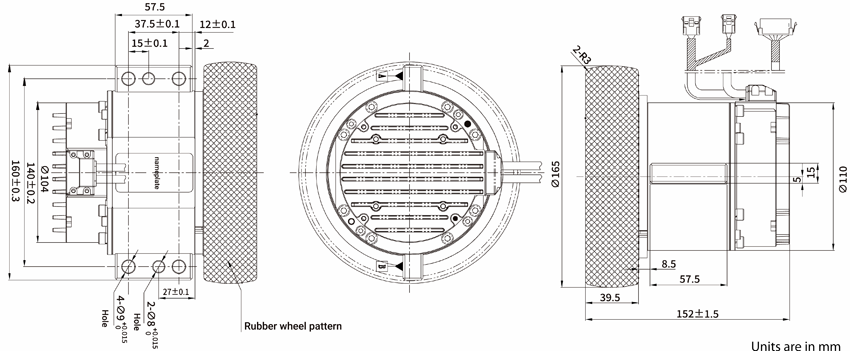

  • Dimensions

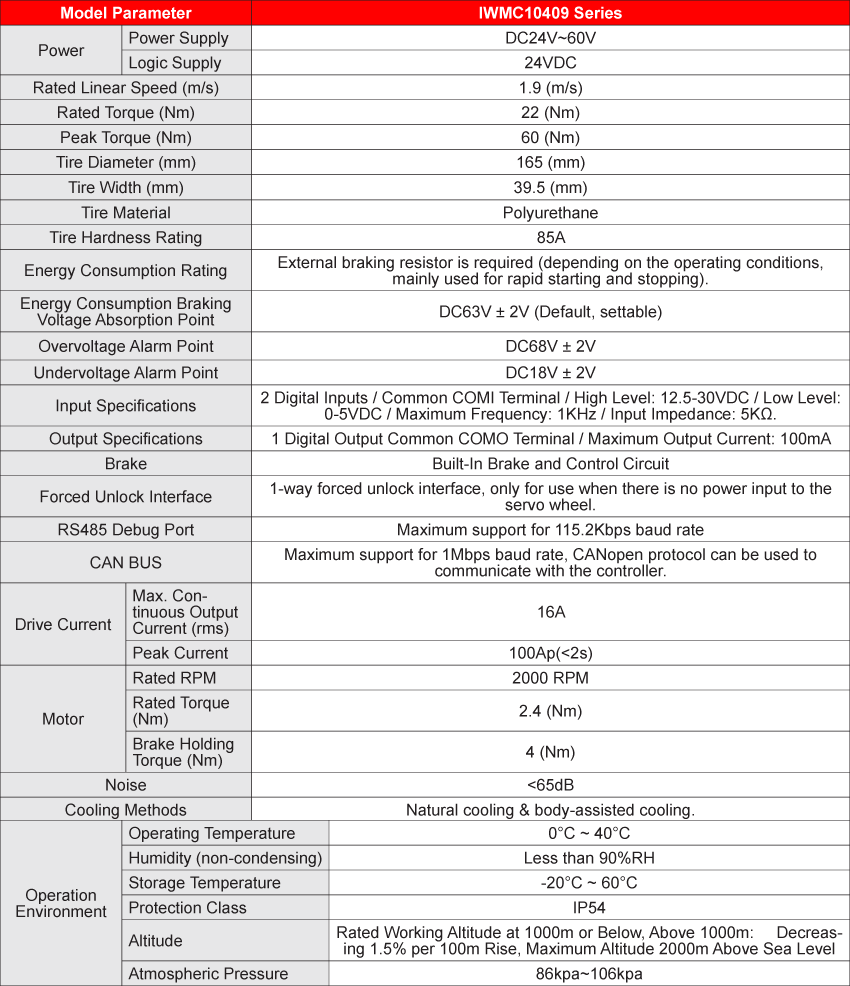

  • Specifications
  • Wiring
  • Driver Pinout
